The Vision

MISSION-GRADE
AERIAL INTELLIGENCE

High-altitude thermal surveillance engineered for the unseen battlefield. Delivering superior NETD sensitivity for long-range target acquisition in zero-light environments.

The Core

ECHELON-1:
COMPACT THERMAL CORES

Precision-engineered for OEM and System Integrators. Our cores feature a universal mounting interface and ultra-low latency digital output, optimized for SWaP-C constrained platforms.

Universal mounting interface for seamless integration
Ultra-low latency digital output
SWaP-C optimized for constrained platforms

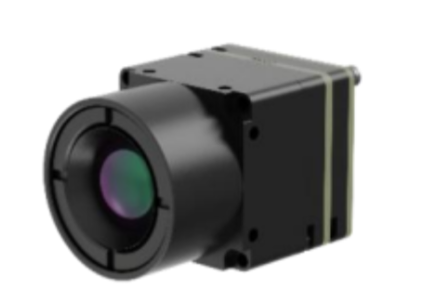

E-Vector Labs ECHELON-1 Compact Thermal Core — precision-engineered imaging module
The Split-Grid

TACTICAL USE CASES

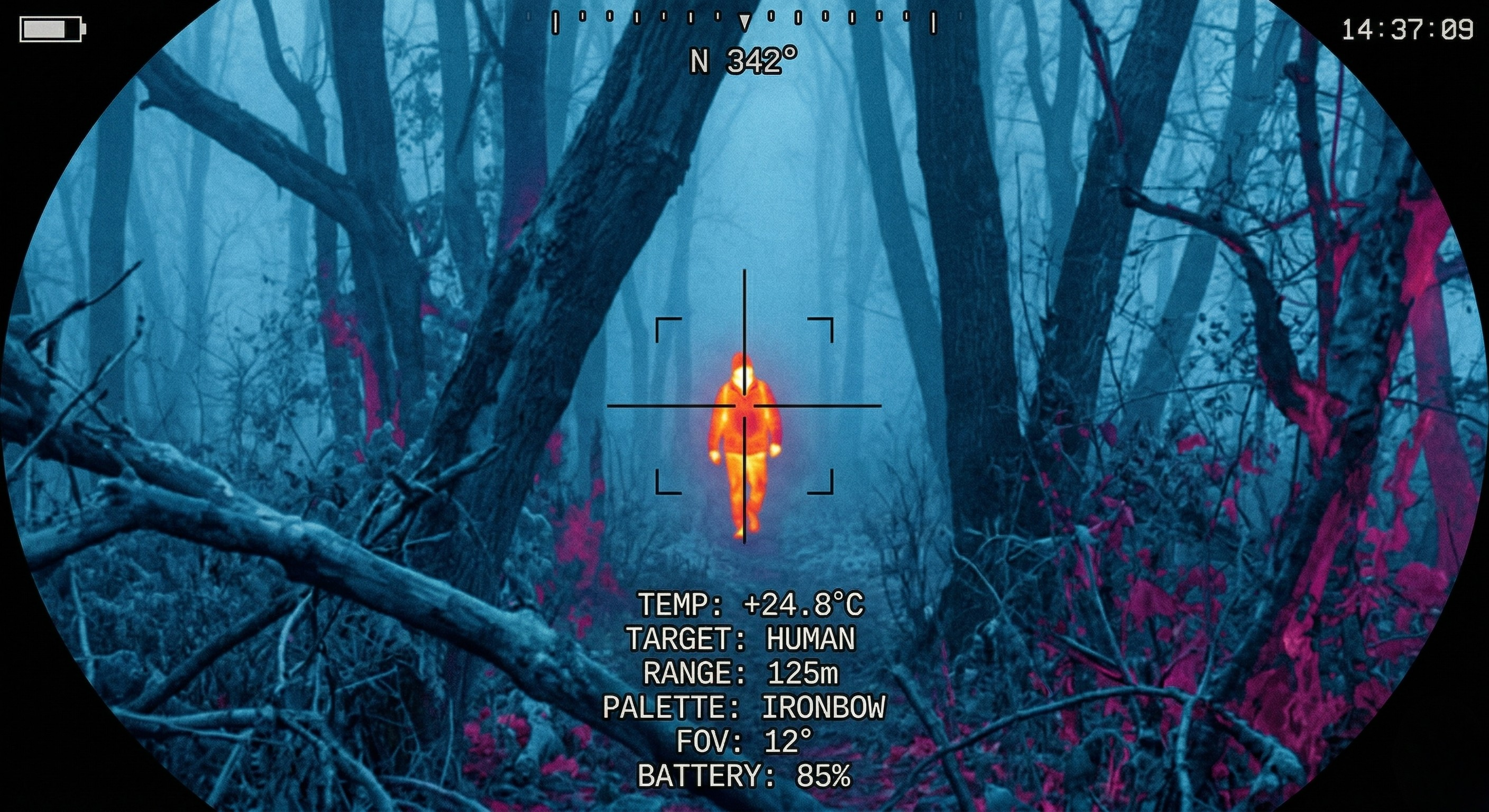

NETD thermal imaging for Search and Rescue through dense canopy
SEARCH & RESCUE (SAR)

High-contrast "Ironbow" palette for rapid human heat-signature detection through dense canopy and atmospheric haze.

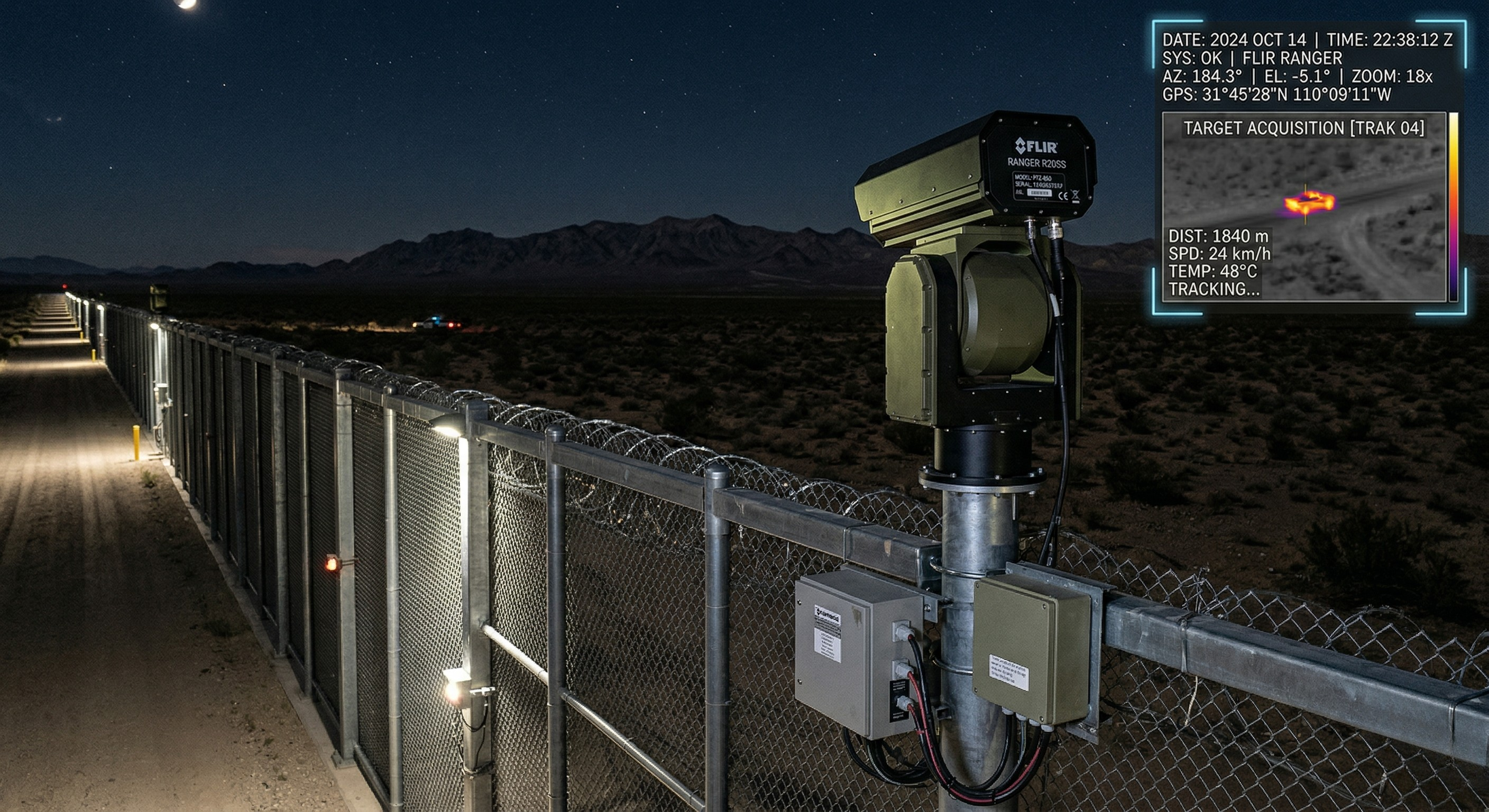

Automated target tracking for border security and critical infrastructure defense
CRITICAL INFRASTRUCTURE DEFENSE

Automated target tracking and border perimeter monitoring with 24/7 autonomous infrared intelligence.

The Banner

ALL-WEATHER
MARITIME SOVEREIGNTY

Built to MIL-STD-810H. Our systems maintain peak thermal performance in extreme maritime conditions, including heavy rain, thick fog, and high-salinity spray.

MIL-STD-810H environmental certification
Rated for extreme maritime conditions
Fog, rain, and salt-spray resistant
Maritime thermal imaging — all-weather surveillance in heavy fog and sea conditions
The Call to Action

THE E-VECTOR
ECOSYSTEM

From modular sensors to fully integrated EO/IR payloads. Strategic sovereignty with 100% Non-Chinese supply chain certainty.

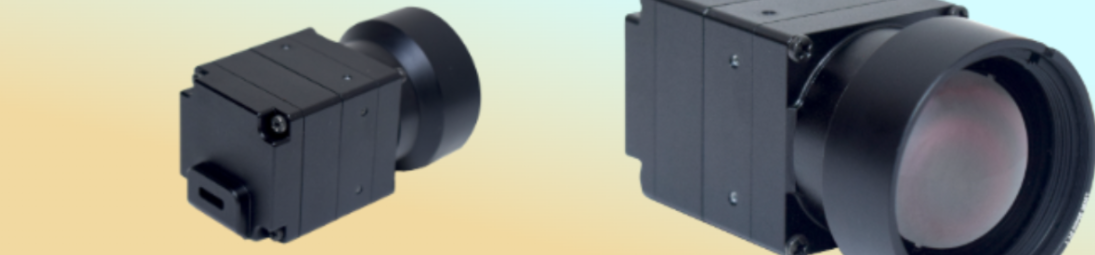

E-Vector Labs complete thermal imaging ecosystem and product lineup
[ REQUEST SYSTEM DATASHEETS ]
Echelon 1 — Thermal Camera Module

Mission-Grade Imaging.
Zero Compromise.

Our thermal camera modules are built to deliver exceptional imaging performance, compact integration, and operational reliability across defense and enterprise platforms.

Key Features

Dual Resolution Options
640 × 512 for high-detail, long-range detection. 320 × 256 for optimized size, weight, and cost.
High Sensitivity (Low NETD)
Superior thermal contrast for enhanced detection in challenging environments.
Ultra-Low Latency Output
Real-time imaging for mission-critical decision-making.
Compact & Lightweight
Optimized for UAVs, handheld systems, and embedded platforms.
Multiple Video Interfaces
Analog / LVDS / MIPI / USB / Ethernet — customizable per deployment.
Wide Lens Options
Configurable FOV for short, medium, and long-range applications.
Ruggedized Construction
Designed for extreme temperatures, shock, and vibration. MIL-standard compliant.
E-Vector Labs thermal camera module — precision engineered isometric schematic
Technical Specifications

Precision Engineered for
the Tactical Edge

Detector
Resolution640 × 512 / 320 × 256
Pixel Pitch12µm / 17µm (configurable)
Spectral Range8 - 14 µm (LWIR)
NETD≤ 50 mK (typical)
Performance
Frame Rate25 Hz / 30 Hz / 50 Hz (configurable)
Startup Time< 5 seconds
Image ProcessingAGC, DDE, 2D/3D Noise Reduction
Optics
LensFixed and motorized options
Focal LengthsCustom available
AthermalizedSupported
Interfaces
Video OutputAnalog / LVDS / MIPI / Ethernet / USB
ControlUART / I2C
SDKFull SDK support for integration
Electrical
Input Voltage5V / 12V (configurable)
PowerOptimized for low power
Mechanical
Form FactorCompact for embedded systems
WeightOptimized per configuration
MountingCustomizable
Environmental
Operating Temp-40°C to +70°C
Storage Temp-50°C to +85°C
Shock & VibMIL-standard compliant
Architecture Comparison
640 × 512
High-Detail, Long-Range
FocusMaximum pixel density
ApplicationsTargeting, Surveillance, Ground Vehicles
AdvantageExtended detection range
Pixel Pitch12µm
320 × 256
SWaP-C Optimized
FocusUltra-lightweight footprint
ApplicationsUAVs, Handheld, Compact Payloads
AdvantageOptimized size, weight, power, cost
Pixel Pitch17µm
OEM Architecture

Seamless OEM
Architecture

E-VECTOR THERMAL CORE ETHERNET GigE Vision USB UVC / SDK MIPI CSI-2 LVDS Digital ANALOG PAL / NTSC
Comprehensive SDK Support • Compact Form Factor • Full Integration Assistance
E-Vector Thermal Core interoperability — star-map showing Ethernet, USB, MIPI, LVDS, and Analog connectivity modules
Thermal Performance

See the Difference
Precision Makes

White Hot thermal imaging view — 640x512 high-contrast tactical capture demonstrating NETD ≤ 50 mK sensitivity
Standard Sensitivity
Low Contrast Image
Diagnostic Readout Panel
METRIC:NETD ≤ 50 mK
RESULT:Superior thermal contrast
ADVANTAGE:Enhanced detection
LATENCY:< 3ms
STATUS:OPERATIONAL
NETD ≤ 50 mK
High Contrast Thermal
Customization Options

Tailored to Your
Platform

Resolution & detector selection
Lens and FOV customization
Interface and output formats
Housing and mechanical design
Software and image processing tuning
Integration Support

Designed to Integrate.
Built to Perform.

We provide complete support for OEMs and system integrators:

SDK & API access
Integration assistance & consulting
Custom mechanical and optical configuration
Image tuning and calibration
Compliance & Trust

Reliability Where
It Matters Most

NDAA-Compliant

Meeting the highest standards of defense procurement compliance for secure strategic deployments.

Compliant

Non-Chinese Supply Chain

Complete supply chain transparency with zero dependency on Chinese components.

Verified

MIL-Standard Certified

Ruggedized for shock, vibration, and temperature extremes under military standards.

Certified
Get Started

Infrared Intelligence.
Tactical Advantage.

Looking for a thermal imaging module tailored to your platform?

[ Request Datasheet ] [ Order Evaluation Kit ] [ Scope Custom Requirements ]
